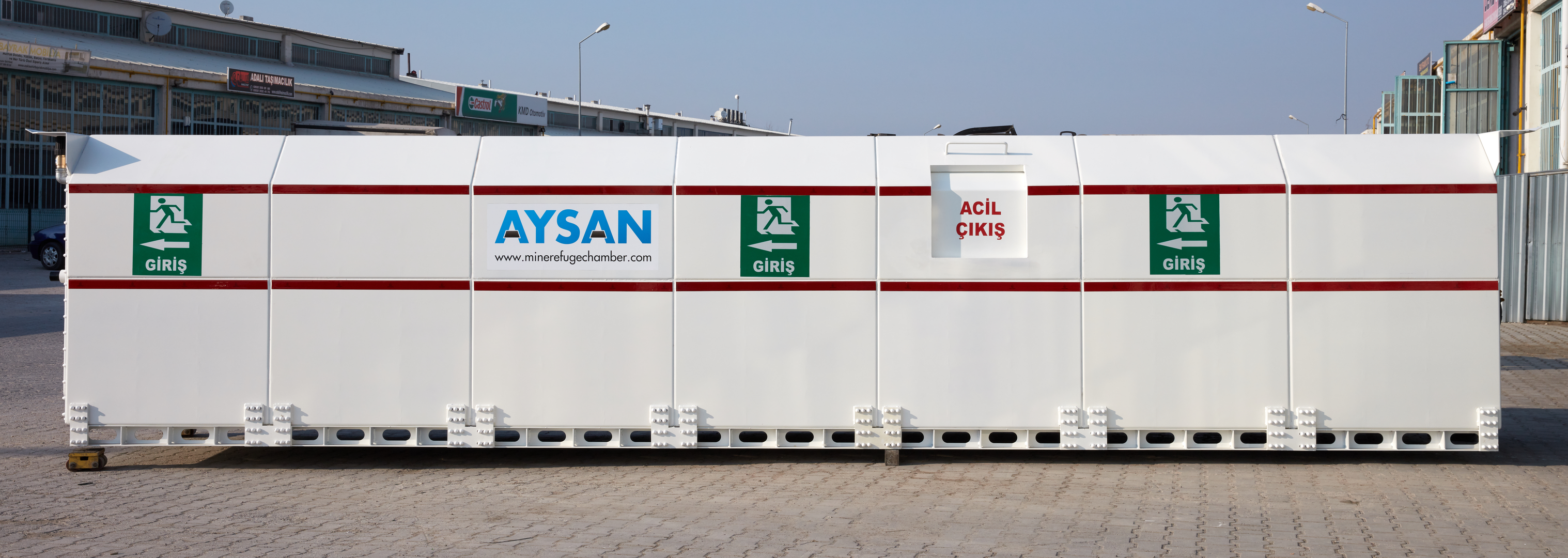

Modular Mine Refuge Chamber
Product Details and Technical Specifications
Product Summary
The AYSAN Modular Mine Refuge Chamber is engineered to adapt to the dynamic nature of underground operations, offering a portable and expandable structure that can be easily transported, quickly assembled, and repositioned to any required location.
With its reinforced steel body, positive pressure system, advanced air purification technologies, and dependable oxygen supply, it provides a secure, controlled, and sustainable safe haven during emergencies. The modular architecture allows for straightforward capacity expansion, simplified maintenance, and seamless relocation as the mine progresses.
Developed with AYSAN’s engineering expertise, this system delivers the ideal balance of flexibility, durability, and long-term operational safety.
Technical Specifications and Dimensions
| Model | Occupancy | Width (mm) | Height (mm) | Length (mm) | |
|---|---|---|---|---|---|
| Person | Duration (h) | ||||
| AYS-MRC-8 | 8 | 36 | 1640 | 1844 | 7310 |
| AYS-MRC-12 | 12 | 36 | 1640 | 1844 | 8485 |
| AYS-MRC-16 | 16 | 36 | 1640 | 1844 | 9660 |
| AYS-MRC-20 | 20 | 36 | 1640 | 1844 | 10835 |
| AYS-MRC-24 | 24 | 36 | 1640 | 1844 | 12010 |
| AYS-MRC-28 | 28 | 36 | 1640 | 1844 | 13185 |
| AYS-MRC-30 | 30 | 36 | 1640 | 1844 | 14360 |
Features and Benefits
Modular Design
Expandable design adaptable to changing capacity needs.

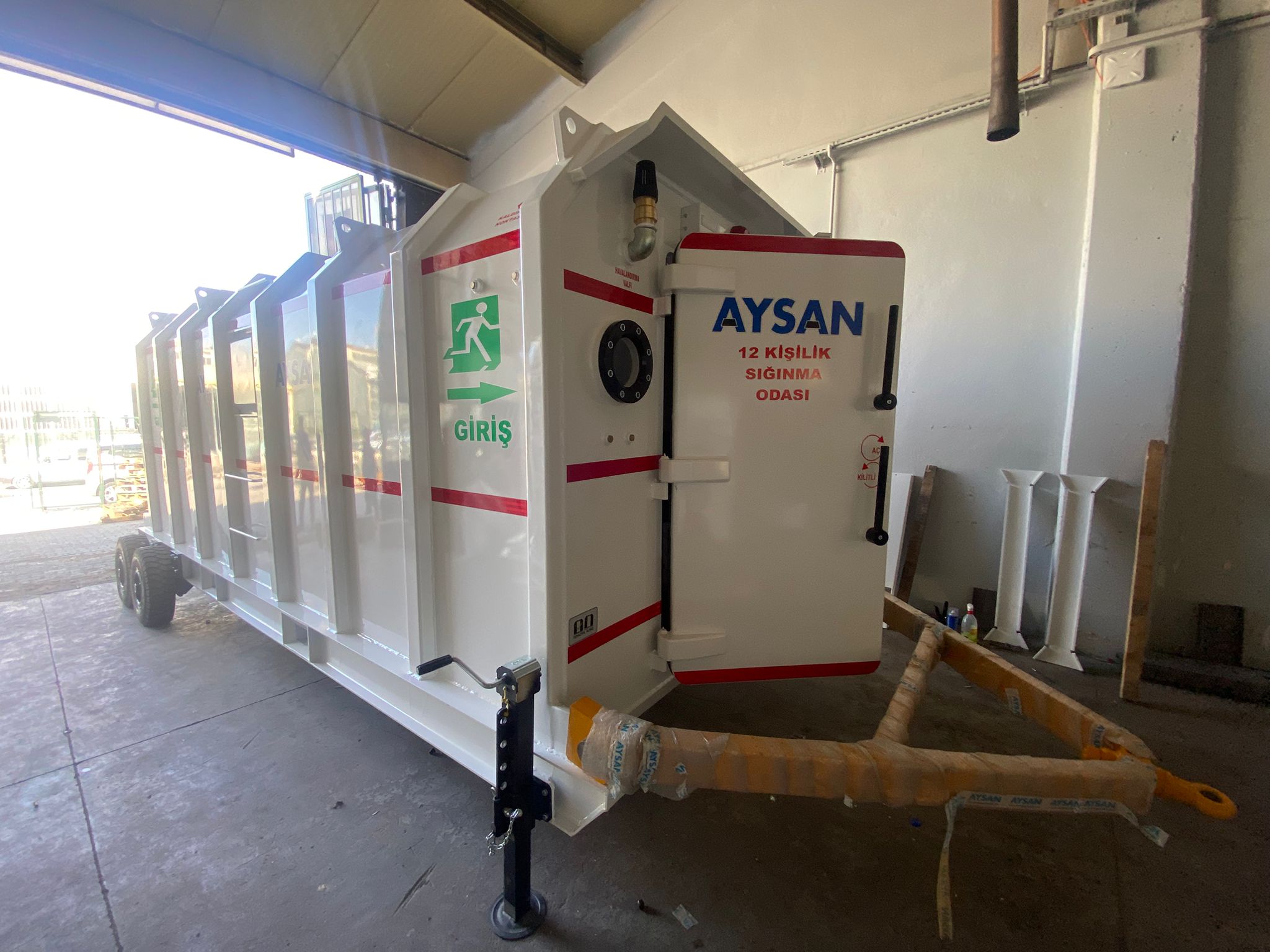

Easy Transportation
Segmented structure enables easy transport in narrow underground drifts.
Gas-Tight Sealed Structure
Gas-tight sealed structure preventing the ingress of toxic gases and smoke.
Integrated Life-Support Systems
Integrated air, oxygen, gas management and power systems operating as a unified life-support solution.
Remote Monitoring System
Enables remote, real-time monitoring of the chamber interior.
Maintenance-Oriented Design
Designed for quick access to service points and simplified maintenance.
Options
